Recently I learned Spring Security and had to implement its basic features, so I'm writing this blog post to just organize what I did/learned and solidify my understanding.


Warning: Very many technical details about spring boot security

AuthController.java

First, we have AuthController.java , which handles all endpoints related to authentication and authorization.

@Slf4j
@RequiredArgsConstructor
@RestController
@RequestMapping("/api/auth")
public class AuthController implements AuthApi {

    private final AuthService authService;

    // where client first calls to get the initial CSRF token
    @GetMapping("/csrf-token")
    public ResponseEntity<Void> getCsrToken(CsrfToken csrfToken) {
    // this method creates token in CookieCsrfTokenRepository
    // when the response is sent back, the HTTP response header includes Set-Cookie + created token
    // then client saves that cookie (that includes the token)
    String tokenValue = csrfToken.getToken();
    log.debug("CSRF 토큰 μš”μ²­: {}", tokenValue);
    return ResponseEntity
        .status(HttpStatus.NON_AUTHORITATIVE_INFORMATION)
        .build();
    }
    ...
}

This assignment instructed us to use the Double Submit Cookie approach.

  • Basically when the client first calls the server to get the initial CSFR token, it calls this getCsrToken method. It's the first thing that's called when the application is run!

  • When the server responds with the csrf token, it includes the Set-Cookie header. The cookie includes a created, unique token.

  • Then the client receives the response, then saves the cookie (that includes that unique token) in the browser.

    • XSRF-TOKEN is the conventional name of the cookie where the token value is stored. The actual token value will be a random string like a1b2-c3d4-e5f6-g7h8.

  • Now, in all future requests, the token is sent back to the server in 2 places simultaneously (hence a double submission):

    • It sends a cookie (done automatically): The browser automatically includes the XSRF-TOKEN cookie with every request because it's stored for that domain.

      • Once a cookie is set for a specific domain/server (e.g., your-app.com), the browser will automatically include that cookie in every single subsequent request to that same domain/server.

    • 2 methods (manually):

      • Header (Modern API/SPA Approach): Frontend code reads the value from the cookie (that was saved earlier) and manually adds it to a request header named X-XSRF-TOKEN.

        • This is my assignment's main approach. Later in SecurityConfig , I set the CSRF token to be stored in CookieCsrfTokenRepository which tells SPring Security to NOT store the token in server but instead send it to the client in a cookie.

      • Request Parameter Method (More traditional): When the server first renders a page with a form on it, it includes the CSRF token in a hidden input field, like this: <input type="hidden" name="_csrf" value="the-random-token-value"> . When the user submits the form, this hidden field is sent along with the other form data as a request parameter in the body of the request.

  • Now when the server receives the requests, it simply checks if the token in cookie matches the token in the header.

// @AuthenticationPrincipal goes to SecurityContextHolder, gets the user's Authentication object
// & extracts the "Principal" from it, the DiscodeitUserDetails instance created during login
@GetMapping("/me")
public ResponseEntity<UserDto> getUserInfo(
@AuthenticationPrincipal DiscodeitUserDetails discodeitUserDetails) {

if (discodeitUserDetails == null) {
// return 401 Unauthorized instead of crashing with a 500 error
return ResponseEntity.status(HttpStatus.UNAUTHORIZED).build();
}

return ResponseEntity.ok(discodeitUserDetails.getUserDto());
}

This /api/auth/me endpoint is used to check the info of the currently logged in user. The frontend calls this application to get the current user's into (name, pfp, etc).

  • @AuthenticationPrincipal DiscodeitUserDetails discodeitUserDetails

    • @AuthenticationPrincipal annotation tells Spring to go to SecurityContextHolder -> SecurityContext ->authentication -> principal -> cast it to DiscodeitUserDetails, pass it as method argument
    • Then the api controller method can use the DiscodeitUserDetails (explained more later)

Components:

SecurityContextHolder (Global, thread-specific storage)
└── SecurityContext (Container for the Authentication object)
    └── Authentication (Represents the current user's identity and roles)
        β”œβ”€β”€ getPrincipal() -> DiscodeitUserDetails object
        β”œβ”€β”€ getAuthorities() -> List of roles (e.g., ROLE_USER)
        └── isAuthenticated() -> boolean

  • SecurityContextHolder

    • It's a static utility class. Its primary job is to store the security information for the currently executing thread. It's thread-safe because it uses a ThreadLocal strategy which ensures that the information it holds is specific to the current request thread.
    • It basically manages a map-like structure where the key is the current thread and the value is that thread's unique SecurityContext , so there is no possibility that the user's requests get mixed up with another.

  • SecurityContext

    • A simple container object & it's only job is to hold the Authentication object (that's it).
    • SecurityContextHolder.getContext() returns the SecurityContext

  • Authentication object

    • It's the core component that represents the identity of the user for the current request.

    • When a user successfully logs in, Spring Security creates an Authentication object and places it in the SecurityContext . It stores 3 key pieces of information:

      • Principal: The object that identifies the user. After a successful login, the principal is the DiscodeitUserDetails instance that the UserDetailsService created from the database.
      • Authorities: This is a collection of GrantedAuthority objects that represents the permissions or roles assigned to the user (e.g., ROLE_ADMIN, ROLE_USER).
      • Authenticated: A boolean flag. After a successful login this is set to true.

SecurityConfig.java

@Configuration
@EnableWebSecurity
@EnableMethodSecurity
@RequiredArgsConstructor
public class SecurityConfig {

    private final LoginSuccessHandler loginSuccessHandler;
    private final LoginFailureHandler loginFailureHandler;
    private final CustomAuthenticationEntryPoint customAuthenticationEntryPoint;
    private final CustomAccessDeniedHandler customAccessDeniedHandler;


    @Bean
    public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {
    http
        .csrf(csrf -> csrf
            // decides *where* to save the CSRF token
            // saves in HttpSessionCsrfTokenRepository by default (in server's session)
            // CookieCsrfTokenRepository saves the token in client browser's cookie
            // httpOnlyFalse allows JS to read the cookie because
            //   client's script needs to read the cookie and send it thru HTTP header
            .csrfTokenRepository(CookieCsrfTokenRepository.withHttpOnlyFalse())
            // decides *how* to read/handle CSRF tokens -> SpaCsrfTokenRequestHandler
            .csrfTokenRequestHandler(new SpaCsrfTokenRequestHandler())
            // disabling CSRF protection specifically for the H2 console path
            .ignoringRequestMatchers(new AntPathRequestMatcher("/h2-console/**"))

        )
//        .formLogin(Customizer.withDefaults())
        .formLogin(login -> login
            // tells Spring Security to listen for POST requests to "/api/auth/login"
            // caught by UsernamePasswordAuthenticationFilter
            .loginProcessingUrl("/api/auth/login")
            .successHandler(loginSuccessHandler)    // 둜그인 성곡 ν›„ ν•Έλ“€λŸ¬
            .failureHandler(loginFailureHandler)      // 둜그인 μ‹€νŒ¨ ν›„ ν•Έλ“€λŸ¬
        )
        .logout(logout -> logout
            .logoutUrl("/api/auth/logout")
            .logoutSuccessHandler(
                // Designed specifically for REST APIs
                // Only job is to return a specific HTTP status code when logout successful
                new HttpStatusReturningLogoutSuccessHandler(HttpStatus.NO_CONTENT))
        )
        // allowing the H2 console to be loaded in a frame
        .headers(headers -> headers
            .frameOptions(FrameOptionsConfig::disable)
        )
        .authorizeHttpRequests(auth -> auth
            // these don't need authentication
            .requestMatchers(
                // Root, HTML/static files
                "/",
                "/index.html",
                "/favicon.ico",
                "/static/**",
                "/assets/**",
                "/*.js",
                "/*.css",
                "/*.png",
                "/*.svg",
                "/*.jpg",
                "/.well-known/**",
                // apis
                "/api/users",
                "/api/auth/csrf-token",
                "/api/auth/login",
                "/api/auth/logout",
                "/api/auth/**",
                // other stuff
                "/h2-console/**",
                "/swagger-ui/**",
                "/v3/api-docs/**",
                "/actuator/**"
            ).permitAll()
            // all other should be authenticated
            .anyRequest().authenticated()
        )
        .exceptionHandling(ex -> ex
            // authentication failure
            .authenticationEntryPoint(customAuthenticationEntryPoint)
            // authentication succeeded but cannot access resource (forbidden 403)
            .accessDeniedHandler(customAccessDeniedHandler)
        )
        // persistent cookie -> gives new JSESSIONID if missing
        .rememberMe(remember -> remember
            .key("my-remember-key")
            .rememberMeCookieName("discodeit-cookie")
            .tokenValiditySeconds(7 * 24 * 60 * 60) // cookie expiration date (7 days)
            .rememberMeParameter("remember-me")
        )
        // blocking concurrent logins
        .sessionManagement(management -> management
            .sessionConcurrency(concurrency -> concurrency
                .maximumSessions(1)
                .maxSessionsPreventsLogin(true)
                .sessionRegistry(sessionRegistry())
            ))
    ;
    return http.build();
    }

  • SecurityConfig is literally like the master rulebook or the central configuration for the entire security setup.

  • The @EnableWebSecurity annotation is like a big switch that turns on all the security features

  • We define a series of instructions (as @Bean methods) that tell Spring Security exactly how to behave. The most important set of instructions is the SecurityFilterChain :

    • .csrf(...): Cross-Site Request Forgery protection. Prevents attackers from tricking users into submitting malicious requests without their knowledge.

      • As mentioned earlier, by using CookieCsrfTokenRepository , the cookie is sent to the client in a cookie instead of the default HttpSessionCsrfTokenRepository , which saves in the server.
      • .withHttpOnlyFalse() : allows JS to read cookie
      • .csrfTokenRequestHandler(new SpaCsrfTokenRequestHandler()) : We tell spring explicitly how to find & validate the token when request comes in. The paCsrfTokenRequestHandler knows how to look for the token value sent in the appropriate cookie/header and compare them.

    • .formLogin(...): Sets up how users log in with a username and password.

      • loginProcessingUrl("/api/auth/login"): Tells Spring Security that we want to treat any POST requests to this URL as a valid login attempt (thus we don't implement this in the controller)
      • successHandler(...) and failureHandler(...): Telling Spring Security to use custom classes to decide what to do after a successful or failed login (e.g., return a specific JSON response).

    • .authorizeHttpRequests(...): Where you define your access rules:

      • requestMatchers(...).permitAll(): Listing all the URLs that anyone can access without logging in (e.g., the homepage, login page, static files).
      • anyRequest().authenticated(): Catch-all rule that says that any remaining URL not listed above the user MUST be logged in.

    • .exceptionHandling(...): Defines what happens when security rules are broken.

      • authenticationEntryPoint(...): Handles Authentication failures (HTTP 401 Unauthorized). This is when a user who isn't logged in tries to access a protected page.
      • accessDeniedHandler(...): Handles Authorization failures (HTTP 403 Forbidden). This is when a logged-in user tries to access something they don't have the permission for (e.g., a regular user trying to access an admin page).

    • .sessionManagement(...): Controls user login sessions.

      • RN it's configured it so that a user can only be logged in from one place at a time maximumSessions(1)). The old session is invalidated if they log in on a new computer.

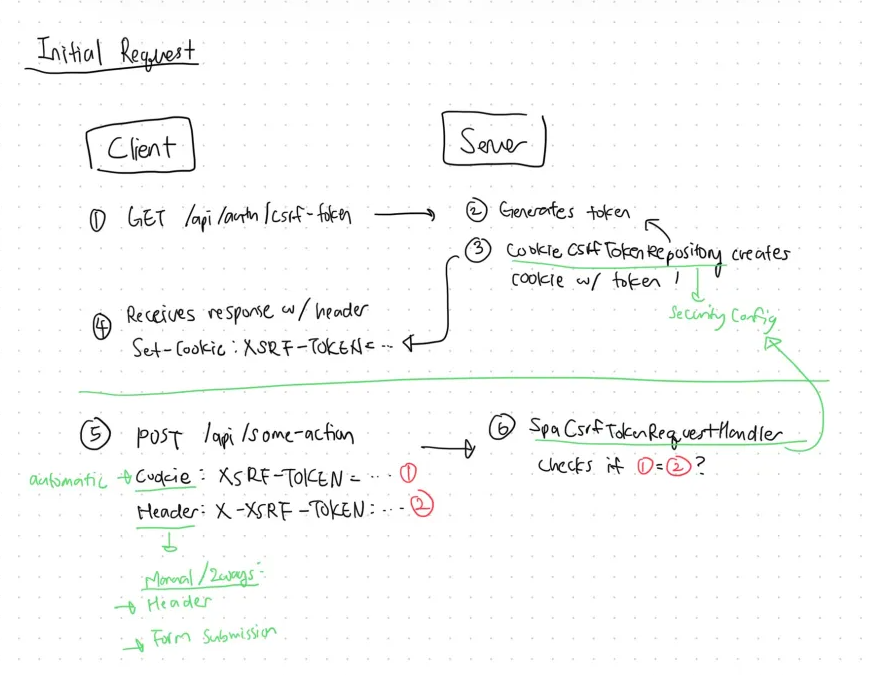

Request/Response flow example with CSRF token

Custom UserDetails/UserDetailsService

  • UserDetailsService

    • A service interface which only job is to load user-specific data from the application's repository.
    • Only 1 method to implement: loadUserByUsername(String name)

  • UserDetails

    • An interface that represents a user in a format that Spring Security can understand.

    • An object that implements UserDetails must provide at least three key pieces of information (which we will do)

      1. getUsername(): The user's username.

      2. getPassword(): The user's hashed password from the database.

      3. getAuthorities(): A collection of permissions the user has (e.g., ROLE_USER, ROLE_ADMIN).

  • Basically the standard approach is to implement them for any normal apps lol. Without these Spring Security would have no way to connect to my application's specific user entity.

    • We implement UserDetailsService to teach Spring Security how to find a user in my system
    • And UserDetails to teach Spring Security how to get the password, roles, and status from the app's user object

My custom implementation of UserDetailsService (DiscodeitUserDetailsService )

@RequiredArgsConstructor
public class DiscodeitUserDetailsService implements UserDetailsService {

    private final UserRepository userRepository;
    private final UserMapper userMapper;

    @Override
    public UserDetails loadUserByUsername(String name) throws UsernameNotFoundException {
    Optional<com.sprint.mission.discodeit.entity.User> optionalUser = userRepository.findByUsername(
        name);
    com.sprint.mission.discodeit.entity.User user = optionalUser.orElseThrow(
        UserNotFoundException::new);

    // converting the user's roles from the database to the format Spring Security needs
    Collection<? extends GrantedAuthority> authorities = List.of(
        new SimpleGrantedAuthority("ROLE_" + user.getRole().toString()));
    return new DiscodeitUserDetails(userMapper.toDto(user), user.getPassword(), authorities);
    }
}

  • Basically what we have to do is:

    • Take the incoming username string.

    • Query the app's userRepository to find the corresponding user in the database.

    • If the user is found, wrap your user entity into an object that implements UserDetails and return it (We also implement UserDetails later).

      • For roles, the user stores the role as an enum. We basically have to add the ROLE_ prefix to make the application's roles compatible with Spring Security's built-in hasRole() expression.

    • If the user is not found, you throw a UsernameNotFoundException.

And of UserDetails (DiscodeitUserDetails)

@Getter
@RequiredArgsConstructor
public class DiscodeitUserDetails implements UserDetails {

    private final UserDto userDto;
    private final String password;
    private final Collection<? extends GrantedAuthority> authorities;

    @Override
    public Collection<? extends GrantedAuthority> getAuthorities() {
    return this.authorities;
    }

    @Override
    .... // overrides isAccountNonExpired, isAccountNonLocked, isCredentialsNonExpired, isEnabled by just returning true
    }


    @Override
    public boolean equals(Object o) {
    if (this == o) {
        return true;
    }
    if (!(o instanceof DiscodeitUserDetails that)) { // includes null
        return false;
    }
    return Objects.equals(this.getUserDto().userId(), that.userDto.userId());
    }

    @Override
    public int hashCode() {
    return Objects.hash(this.getUserDto().userId());
    }

}

  • It's just like a data container that is use dto wrap the app's own User entity, and as seen earlier it's used in UserDetailsService.

  • About overriding equals and hashCode

    • In order to guarantee that sessions should be unique, Spring boot's official docs tell us that we must override these methods, because the default SessionRegistry implementation in Spring Security relies on an in-memory Map that uses these methods to correctly identify and manage user sessions.

Sessions

A while ago, in SecurityFilterChain, we had this part:

@Configuration
@EnableWebSecurity
@EnableMethodSecurity
@RequiredArgsConstructor
public class SecurityConfig {

    private final LoginSuccessHandler loginSuccessHandler;
    private final LoginFailureHandler loginFailureHandler;
    private final CustomAuthenticationEntryPoint customAuthenticationEntryPoint;
    private final CustomAccessDeniedHandler customAccessDeniedHandler;


    @Bean
    public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {
    http
        ..... (other stuff)
        // blocking concurrent logins
        .sessionManagement(management -> management
            .sessionConcurrency(concurrency -> concurrency
                .maximumSessions(1)
                .maxSessionsPreventsLogin(true)
                .sessionRegistry(sessionRegistry())
            ))
    ;
    return http.build();
    }
    .....
    // acts as a logbook or tracker for sessions
    @Bean
    public SessionRegistry sessionRegistry() {
    return new SessionRegistryImpl();
    }

    // listener that ensures when a session naturally expires (e.g., due to a timeout), it's properly removed from the SessionRegistry
    @Bean
    public HttpSessionEventPublisher httpSessionEventPublisher() {
    return new HttpSessionEventPublisher();
    }
}

My assignment also required me to prevent a user from logging in from multiple places at once.

Main components:

  • In SecurityFilterChain:

    • sessionManagement(): The main entry point for configuring all rules related to HTTP sessions in Spring Security.
    • sessionConcurrency(): Lets you set up rules specifically for concurrent (simultaneous) sessions for the same user.
    • .maximumSessions(1): Dictates that a single user account can only have one active session at any given time.
    • .maxSessionsPreventsLogin(true): Defines what happens when a user with an active session tries to log in again from a different browser or device. Because it's set to true, the new login attempt will be rejected. (If it were false, the old session would be kicked out, and the new one would be allowed).

  • SessionRegistry

    • Acts as a logbook or tracker that keeps a list of all currently active sessions and which user they belong to. The .maximumSessions(1) rule relies on this registry to check if a user already has an active session.

  • HttpSessionEventPublisher (a helper bean)

    • A listener that ensures when a session naturally expires (e.g., due to a timeout), it's properly removed from the SessionRegistry. It keeps the logbook clean and accurate.

I also had to manually log out a user out if their permissions change:

@Slf4j
@RequiredArgsConstructor
@Service
public class BasicAuthService implements AuthService {

    private final UserRepository userRepository;
    private final UserMapper userMapper;
    private final SessionRegistry sessionRegistry;

    @PreAuthorize("hasRole('ADMIN')")
    @Transactional
    public UserDto updateRole(RoleUpdateRequest roleUpdateRequest) {
    UUID userId = roleUpdateRequest.userId();
    Role role = roleUpdateRequest.role();
    User user = userRepository.findById(userId)
        .orElseThrow(() -> UserNotFoundException.withId(userId));
    user.updateRole(role);

    // find the user's principal in the SessionRegistry and expire their active sessions
    List<DiscodeitUserDetails> currentUserDetailsList = sessionRegistry.getAllPrincipals().stream()
        .filter(p -> p instanceof DiscodeitUserDetails)
        .map(p -> (DiscodeitUserDetails) p)
        .toList();

    currentUserDetailsList.stream()
        .filter(d -> d.getUserDto().userId().equals(user.getId()))
        .findFirst()
        .ifPresent(userDetails -> {
            List<SessionInformation> sessions = sessionRegistry.getAllSessions(userDetails, false);
            sessions.forEach(SessionInformation::expireNow);
        });

    return userMapper.toDto(user);
    }

Notes on the summary flow

Creating new user:

  • It doesn't really involve Spring Security features but it follows a typical layered architecture flow (controller, service, repository).

Logging in:

  1. A user submits their username and password.

  2. Spring Security creates an Authentication object containing only these raw credentials. This object is marked as unauthenticated.

  3. This unauthenticated Authentication object is sent to the ProviderManager.

    • ProviderManager is a default implementation of the manager AuthenticationManager , and its job is to manage a list of AuthenticationProvider s; It doesn't really do the work itself, but it delegates the work.

    • When it receives a login request, it asks each provider if it can handle this type of authentication, and finds one that can (like DaoAuthenticationProvider for a username/pw) & passes the request to that provider to do the actual work.

    • So now, the ProviderManager gives the object to the DaoAuthenticationProvider.

      • DaoAuthenticationProvider is the most common implementation of AuthenticationProvider .

  4. The DaoAuthenticationProvider uses the implemented UserDetailsService to fetch the UserDetails for that username.

  5. The DaoAuthenticationProvider uses the PasswordEncoder to verify the password.

  6. If successful, the provider creates a new Authentication object. This new object is fully populated:

    • The UserDetails object is set as the "principal."
    • The user's roles (authorities) are copied from the UserDetails.
    • It's marked as authenticated.

  7. This fully authenticated Authentication object is returned and placed in the SecurityContextHolder, where it stays for the duration of the user's session.
